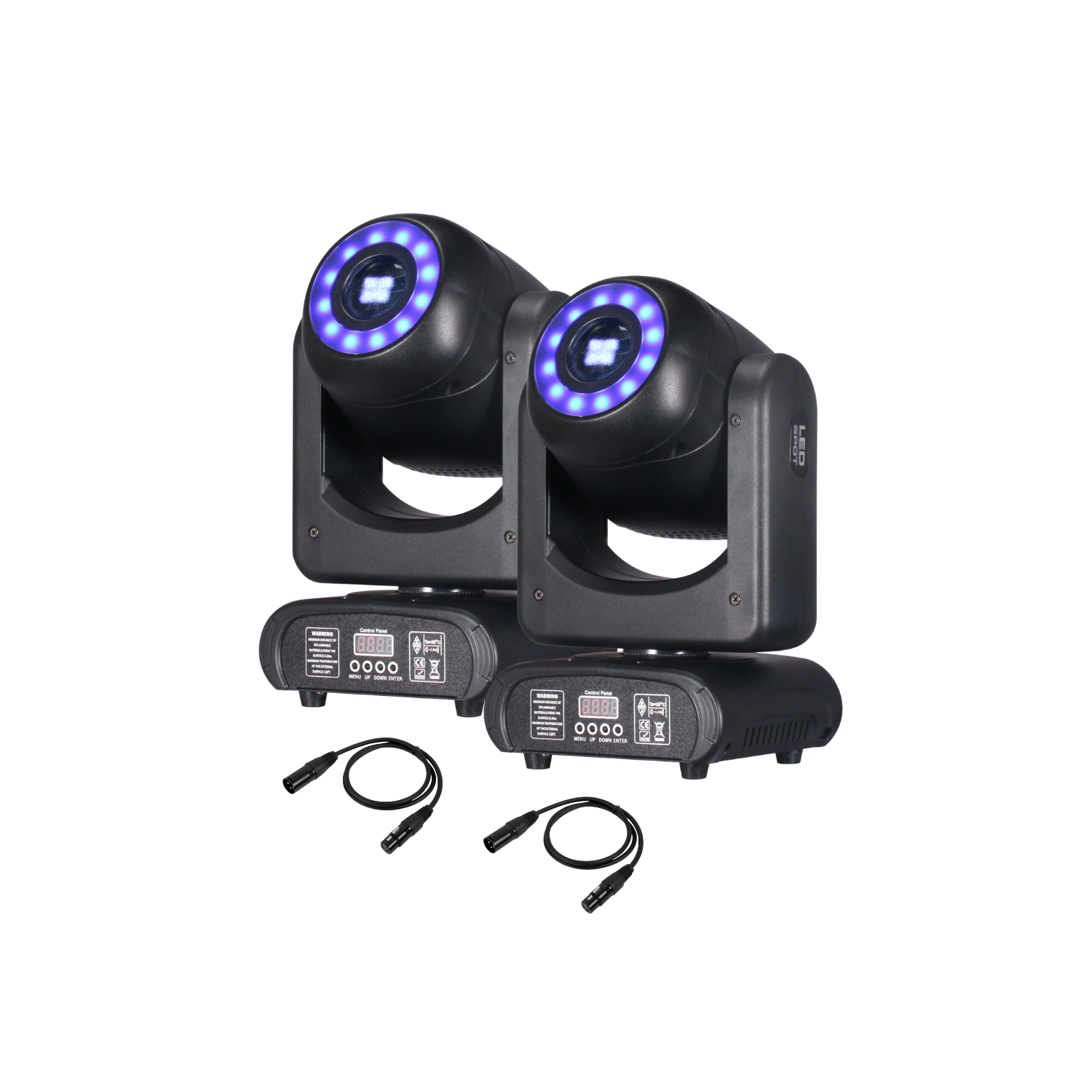

ALPHA SPOT 90 (pair)

ELECTRICAL

Input Power: AC 100–240V
Power Frequency: 50/60Hz
Power Consumption: 95W
Fuse: 5A

LIGHT SOURCE

Source: 80W LED
CCT: 9500K
Halo Ring: 12 pcs RGB LED
Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Wheel: 7 colors + open

ELECTRONICS

Dimming: 0–100% linear dimmer
Strobe: 1–25Hz

OPTICS

Beam Angle: 15°

DYNAMIC EFFECTS

Prism: 3-facet prism
Gobo Wheel: 3 metal gobos + 2 glass gobos
Color: 7 colors + open

CONTROL

DMX Channels: 14CH
DMX Connector: 3-pin XLR input/output
Power Connector: IEC power input
Control Modes: DMX, Master-Slave, Auto, Sound
Pan: 540°, 8/16-bit scanning
Tilt: 270°, 8/16-bit scanning
Display: LED color display with 4 buttons

PHYSICAL

IP Rating: IP20
Housing Color: Black
Working Ambient Temperature: -10°C to 40°C / -14°F to 104°F
Dimensions: 210 × 170 × 340 mm / 8.3 × 6.7 × 13.4 in
Weight: 3.9 kg / 8.6 lb
